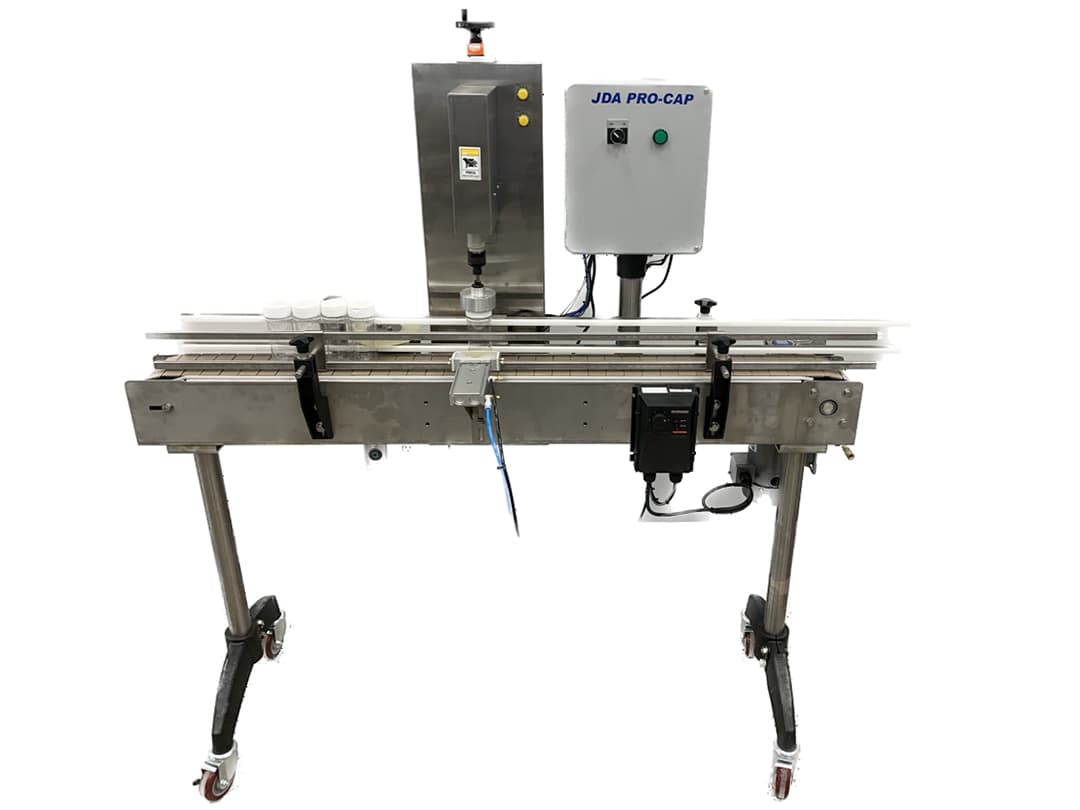

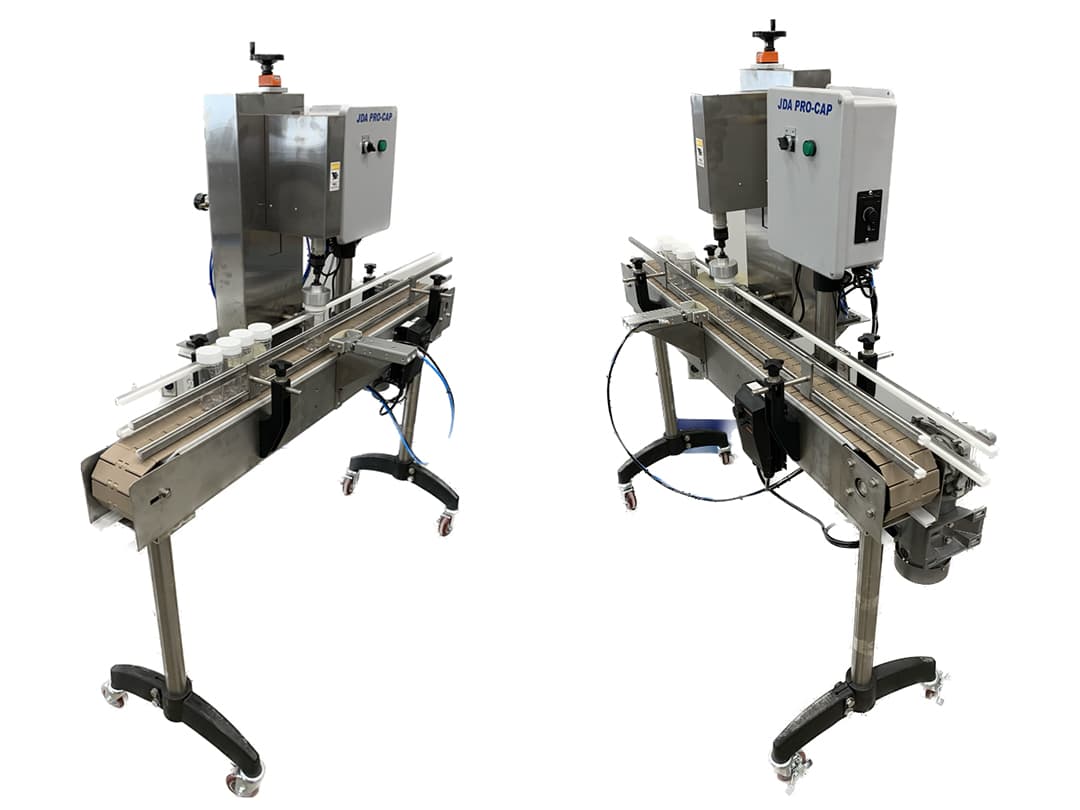

Inline Cap Tightener System
Model ProCap SE
Features
- Works with round, oval, square, rectangular shaped bottles
- Motor with operator adjustable clutch for repeatable torque setting of caps
- Comes with hand crank operator adjustments for quick changeover
- Includes one cap chuck with rubber liner
- Quick change cap tightening chuck design
Specifications
- Bottle size: up to 6.00" diameter x 1" - 9.50" tall (taller available upon request)
- Cap size: 2-80mm with appropriate chuck (larger available upon request)
- Air requirement: 90 psi 3-5 cfm
- Dimensions / weight : 8” wide x 12” long x 30” high
- Weight: 25lbs Power: 110V /220 available upon request
Demonstration of gear pump liquid filler using water.
Automation Kit
- Includes PLC controlled automatic bottle index assembly
- No bottle / no run sensor
- Pneumatic bottle clamp cylinder (to prevent bottle spin)
Sanitary Line Conveyor System
- Dimensions: 5 ft long x 4.5” wide {Longer available}
- Heavy gauge welded stainless steel construction
- DC Variable speed drive with operator controls
- Direction: Left to Right
